Tomcat & Fatcat Wall Fixing Kit Install

Units come complete with an installation pack that contains the following:

3 Feet
3 Foam Pads (plus spare)
1 Fixing Block
2 Fixing Screws
2 Fixing Plugs
1 Connecting Knob
1 Washer
1 Drill Bit
1 Hex Key

Installing your Hicat® will be easier if you have an extra pair of hands & you'll need a step ladder, medium size cross headed screwdriver, tape measure, pencil & a drill - if you have a stud/joist sensor this will also be useful & if fixing into masonry you may need a specialist drill bit



Tomcat & Fatcat Wall Fixing Kit Install 1


1  Install the feet into the three outer inserts on the base of the Hicat® - if you are installing the unit on a smooth hard floor stick the foam pads to the feet



Tomcat & Fatcat Wall Fixing Kit Install 2


2  Install the Wall Fixing Kit to the wall towards the top of the Hicat® making sure you've avoided obstructions & that when installed the internal shelves & features of the unit don't interfere with the Wall Fixing Kit

NB also remember that if you are fitting a Hicatch toy that you will need to factor this in to the positioning of the Wall Fixing Kit



Tomcat & Fatcat Wall Fixing Kit Install 3


3  The supplied Fixing Plugs are universal & suitable for fixing into plasterboard, timber or masonry - installing into plasterboard will give a secure fixing & you can also secure through plasterboard into a stud or joist



Tomcat & Fatcat Wall Fixing Kit Install 4

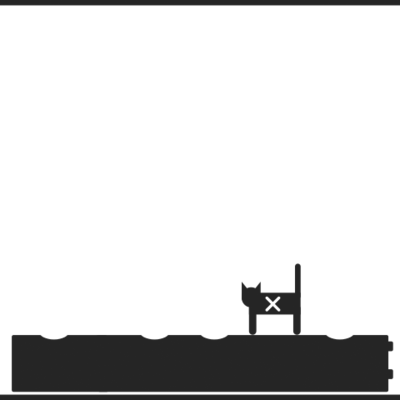

4  Remove cat



Tomcat & Fatcat Wall Fixing Kit Install 5


5  Remember your Hicat® can be rotated & fixed with the Access Holes facing in any direction - when you’ve decided on the rotation & position for your Hicat® use the hex key to adjust the feet to plumb the unit making sure there is a gap between its base & the floor of at least 20mm



Tomcat & Fatcat Wall Fixing Kit Install 6


6  Hold the fixing block in its installed position & mark-up along the top edge of the fixing block then unscrew the fixing bracket & use this as a guide to mark-up the fixing holes on the wall



Tomcat & Fatcat Wall Fixing Kit Install 7


7  Drill the fixing holes making sure they are at least 60mm deep into the wall & then install the fixing plugs into the holes



Tomcat & Fatcat Wall Fixing Kit Install 8


8  Screw the fixing plate on to the wall with the fixing block face-up then re-attach the fixing block to the fixing plate



Tomcat & Fatcat Wall Fixing Kit Install 9


9  Remove cat



Tomcat & Fatcat Wall Fixing Kit Install 10


10  Next mark-up & fix the Hicat® to the fixing block by drilling a hole in the unit where the fixing block will attach - mark the height of the fixing block connecting hole on the Hicat® then use the drill bit to make a hole throught the unit



Tomcat & Fatcat Wall Fixing Kit Install 11


11  Install the connecting knob from inside the Hicat® making sure that the washer is fitted between the knob & the inside surface of the unit - you may need to level out the Hicat® again using the hex key checking that all three feet are all in contact with the floor so the weight is evenly spread between the feet



Tomcat & Fatcat Wall Fixing Kit Install 12


12  Remove cat



Tomcat & Fatcat Wall Fixing Kit Install 13


13  Give your Hicat® a good vacuum inside & out to remove any loose fibres & give the unit a quick check over from time to time to make sure that the fixing block is secure, the feet are level & the unit is stable



Tomcat & Fatcat Wall Fixing Kit Install 14


14  Playtime
