We are frequently asked if we have any tips for making a do-it-yourself version of our Hicat® units so we've put together the following notes for making a DIY Polecat

The following notes are for the new version of our DIY Polecat guide, which includes lots fabrication improvements & techniques over the previous DIY Polecat guide but importantly this latest guide uses the recommended 160mm PVC soil drain pipe to carry out the DIY project - this allows our standard End Cap assembly to be used & as noted in our DIY Update blog this makes for a much easier project in terms of time, fabrication skills & tools plus you have the bonus of being able to use accessories like our Cat’sCradle on your Polecat.

The DIY Kit can be purchased using the link at the bottom of the page - you also have the option of following the previous DIY Polecat guide & purchasing a kit that includes the fixings & materials to make up the End Cap Assemblies if you are not using a 160mm PVC drain pipe.

The price of the DIY Kit is £32 - delivery is calculated at checkout & please get in touch if your country isn’t listed & we can provide a Delivery Quote.

The DIY Kit includes the following parts for the fabrication & installation - we've also listed the materials, tools & other bits & bobs that you will need to complete your DIY Polecat:

DIY Kit

2 End Cap Assemblies
3 Feet
3 Pan Head Screws
1 Ceiling Connector
2 Bushes (Open Ended)
1 Drill Bit
1 Glue Tube
3 Foam Pads

Construction Materials

160mm SDR41 PVC Soil Pipe (ceiling height minus 70mm)
Coir Boucle Carpet (ceiling height plus 150mm in length & 3.5x outside tube diameter in width)

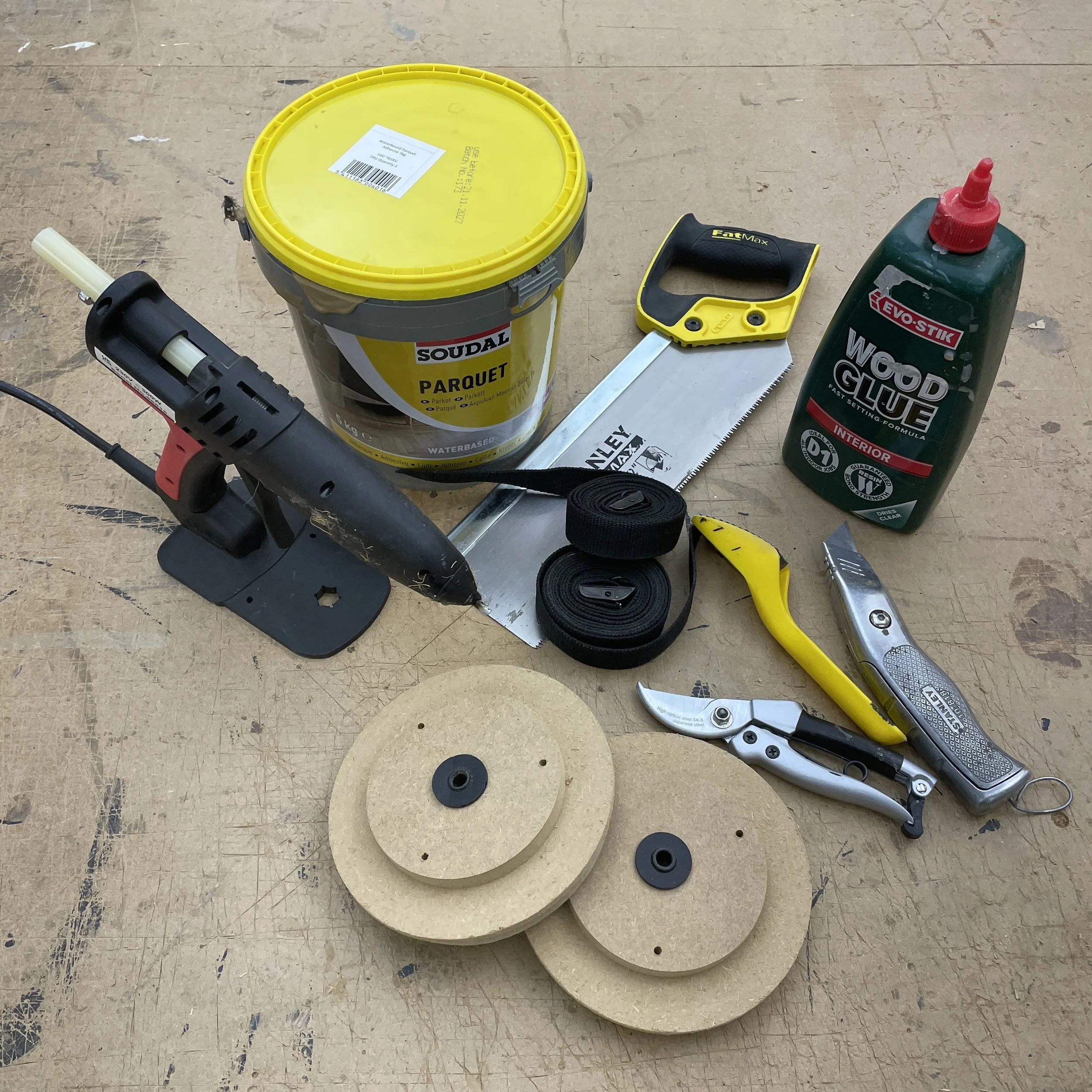

Consumables & Tools

Carpet or Parquet Flooring Adhesive (3-4L)
Hot Melt Glue Sticks (10-20 mini 7mm sticks or 2-4 standard 12mm sticks)
Wood Glue Hot Melt Glue Gun
Tenon or Carpentry Saw
Secateurs
Surform Plane
Utility Knife
Luggage Straps or Twine
Tape Measure
Rubber Gloves
Luggage Straps or Twine
Marker Pen

We recommend having a good read through the following notes before ordering a DIY Kit as there are some materials & tools that may need to be purchased to complete your DIY Polecat so it's prudent to cost & gauge the project beforehand.

We also think it's worth saying that although we have simplified things as much as possible this DIY project may still be too much for an inexperienced DIY'er but that said, nothing ventured, nothing gained.

Overview

The DIY guide is based on the materials we use in our manufacturing process so if you have to deviate from these you may need to make adjustments in terms of processes & quantities.

Our Polecats units are constructed from 4mm thick 152mm inside diameter spiral wound cardboard tubes - as noted above this guide uses a 160mm PVC soil pipe with a 152mm internal diameter, instead of a cardboard tube, & is the most economical way of carrying out the project with the added bonus o being able to use a Cat’s Cradles with your DIY Polecat as the outside diameter of the tube once wrapped should be close to 180mm.

A generic 6” drain pipe term can refer to a Metric or Imperial sizing with slightly different internal & external dimensions so it’s always best to check that the pipe you intend to purchase has a 152mm internal diameter - if you are able to purchase a Metric 160mm PVC SDR41 type this will have a 152mm internal diameter but a pipe that has a slightly thinner or thicker 4mm wall can also work.

We've tested lots of different carpet & come to the conclusion (with lots of the help from our cats) that a wide ribbed looped weave, like Natural Coir Boucle or AVM Wool, which has a 1-1.5cm thick pile with a 1.5cm span between ribs is best for climbing but you can obviously try out your own materials.

Most of our Natural Coir Boucle carpet comes from Alternative Flooring but remnants are normally readily available from whole sale companies like like Designer Carpet & Ebay sometimes has off-cuts available - you may be probably be uneconomical in terms of cost so searching your local carpet stores for unwanted tube cores & online for carpet remnants will definitely be worth investigating.

Polecat has 160mm diameter 22mm thick rebated end caps at each end of the unit as standard - we also cut a 9mm disc & screw this to the end cap to strengthen the end caps so that the unit can take greater loads.

The end cap assembly is fitted with a bush at both ends so you can turn your unit upside down when it becomes worn - the feet can simply be un-screwed & refitted.

We bond the carpet to the tube using a non-toxic non-flammable adhesive - we use a ready mixed water based parquet flooring adhesive made by Soudal, which comes in 5L sizes so one tub will be fine for a standard ceiling height noting that Soudal also make a flooring adhesive, which is not as thick & easy to work with as the parquet flooring adhesive as you won’t be able to apply it easy in notches/ridges because it’s more runny.

The carpet needs to be glued to the post with the ribs running vertically to aid climbing - flooring adhesive is used to bond the covering to the tube but the seam to join the edges of the covering needs to be fixed with a hot melt heated glue gun.

If you don’t have a glue gun there are some reasonably priced mini glue guns available to purchase online but please make sure you purchase additional glue sticks with the gun - you will need between 10-20 of the mini 100mm long sticks for the main seam, end cap fixing & finishing the seam depending on your ceiling height - you can use a contact adhesive in place of the hot melt glue but it will be easier with a glue gun based on our experience & without the strong odours & toxic substances used in contact adhesive.

The carpet is folded around the end of the tube & fixed up to the end cap assembly to give a clean wrapped end detail - if you are using coir boucle or a simailar natural carpet you will also need to finish the seamsSo, if you've read the above & want to give this DIY project a go roll up your sleeves & the following step-by-step notes should see you through to making your own Polecat.

Step-By-Step Fabrication

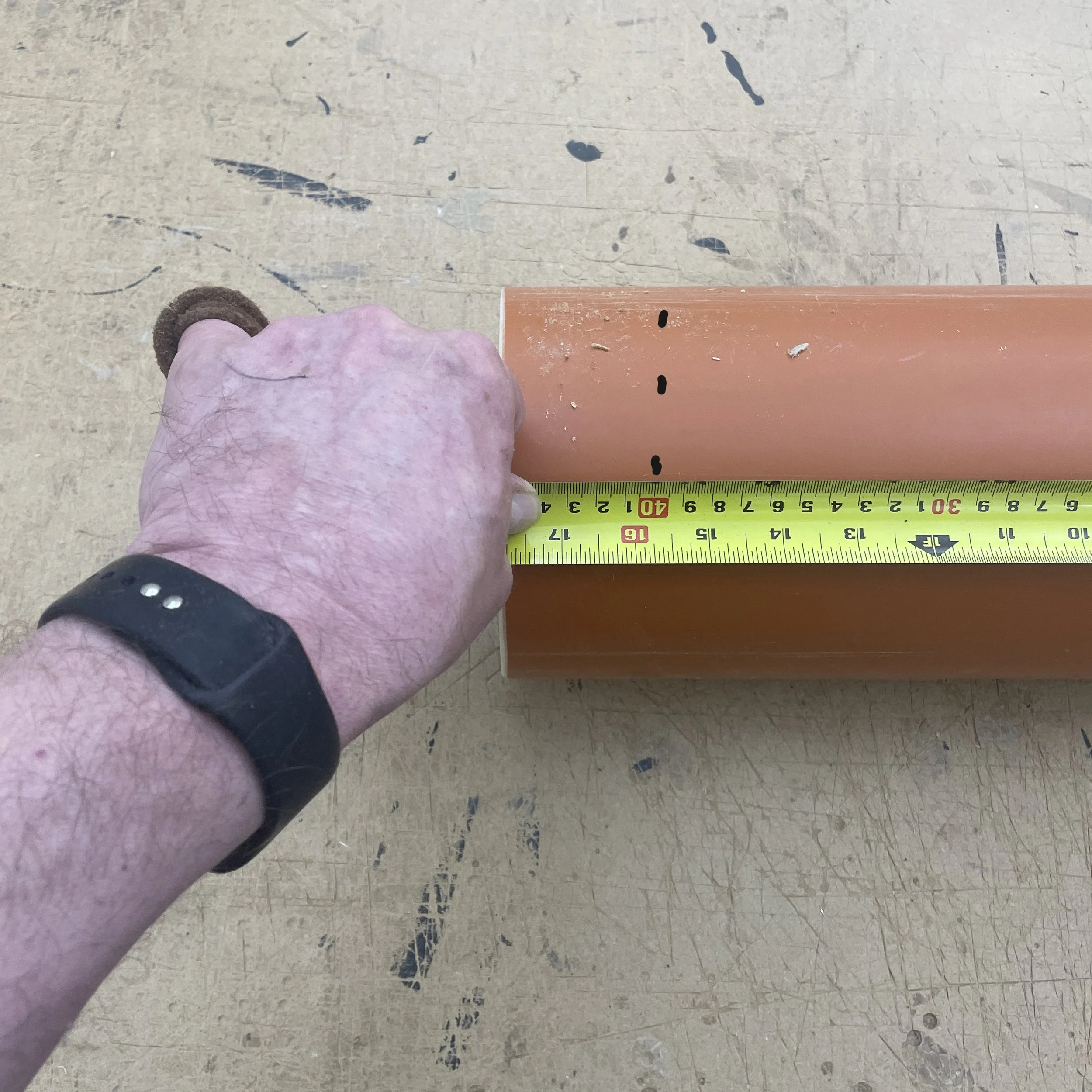

Mark-up & cut the tube to length using a tenon or carpentry saw - the tube length needs to be 70mm shorter than your ceiling height & it helps if you have several marked-up points around the tube as a guide when cutting to ensure a straight cut.

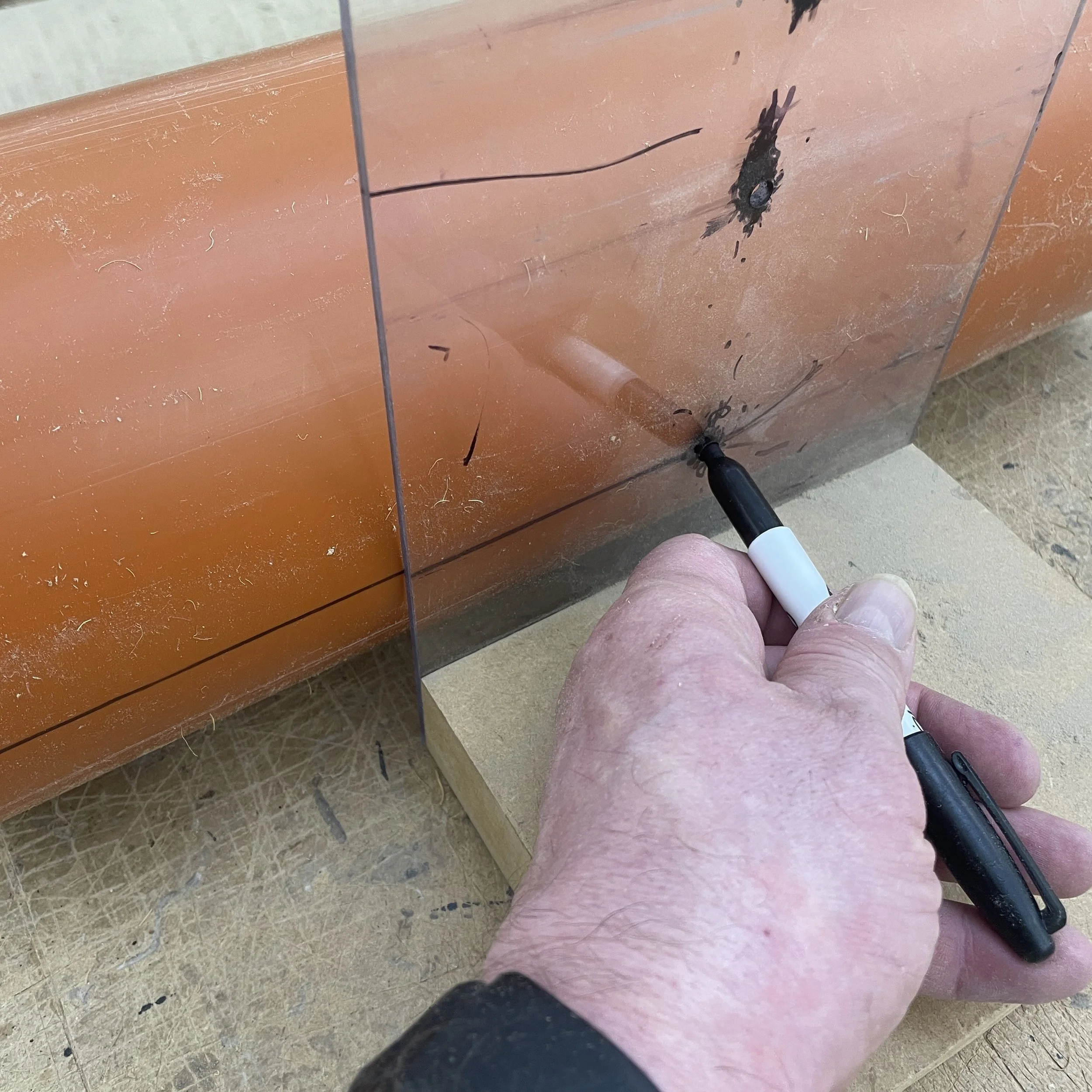

Scribe a horizontal line along the length of the cut tube - we use a template to do this but you can rest a pen on top of anything that’s approximately 8cm tall then run it along the length of the tube.

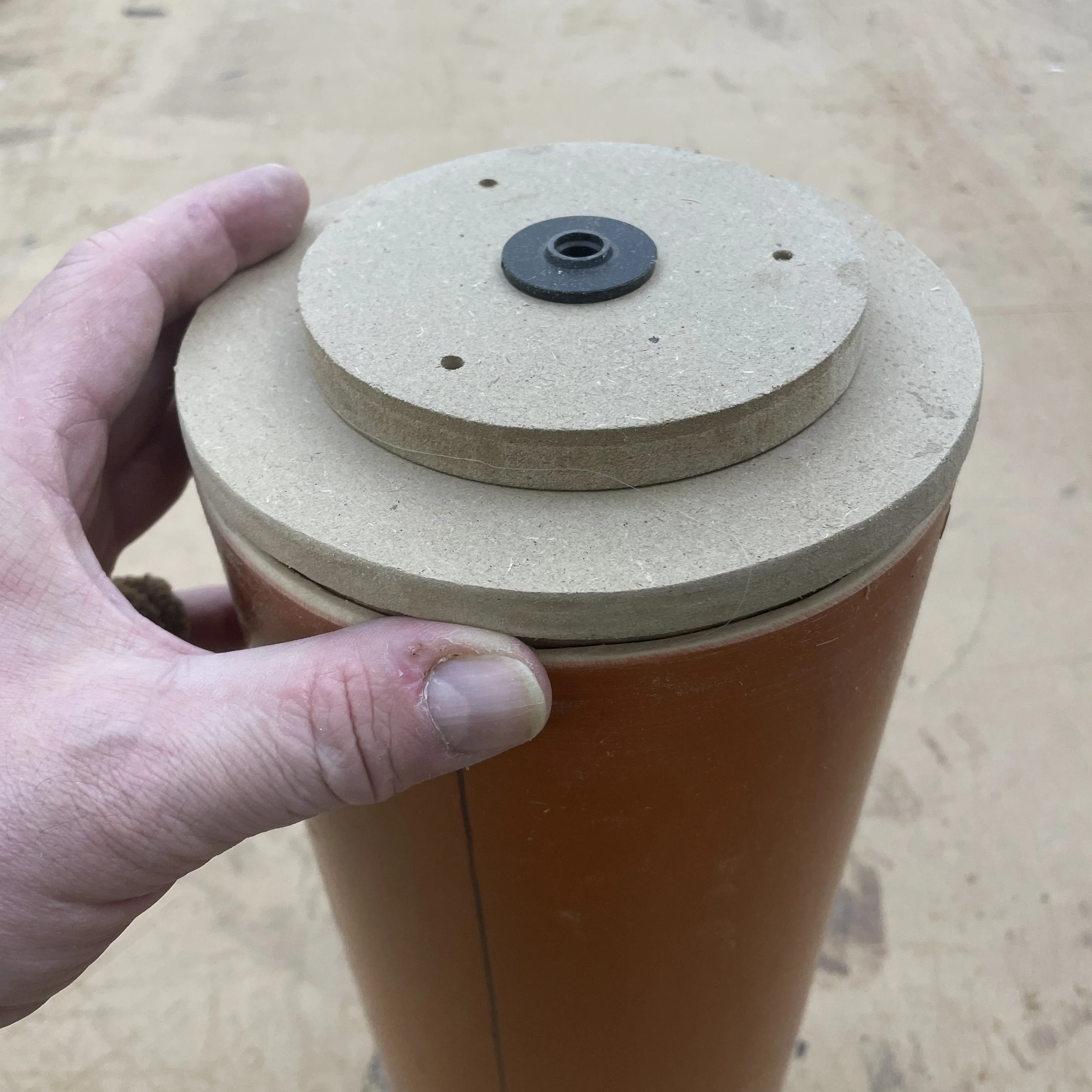

Check the fit of the end caps into the pipe - we do leave the end cap rebate slightly oversized rather than undersized so you will probably need to make some adjustments in sizing.

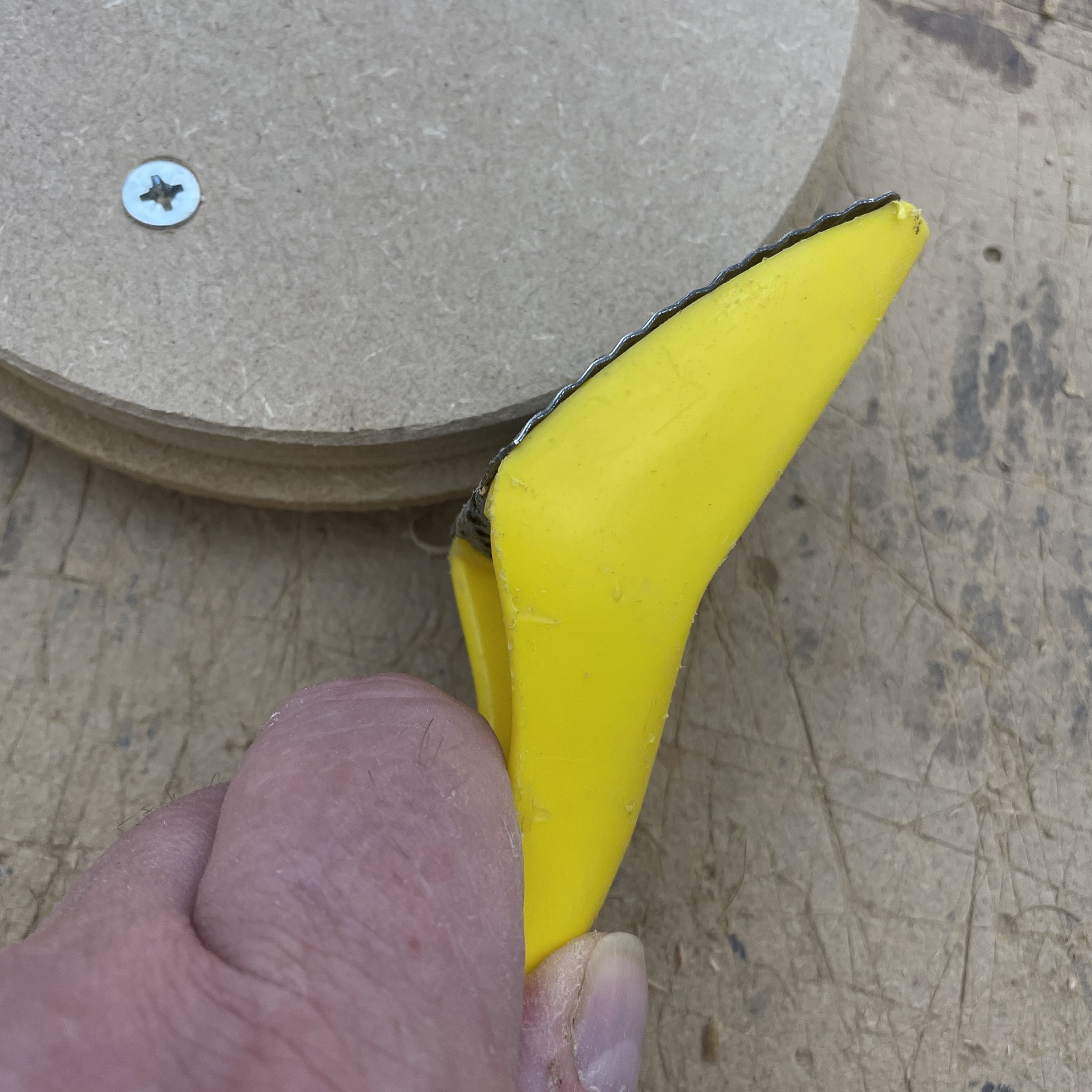

If the end cap assemblies are too tight you can trim back the diameter of the rebate using a surform plane

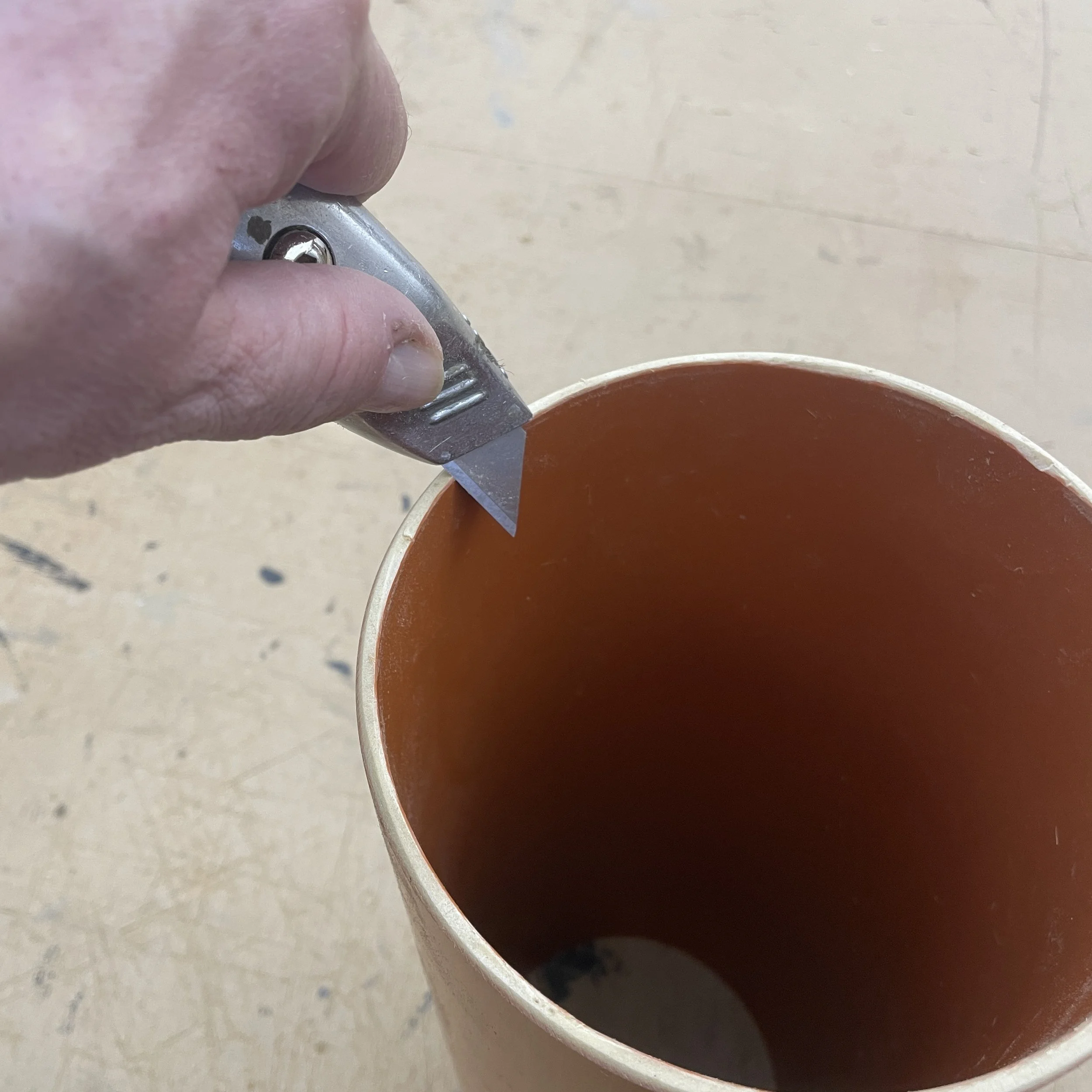

You can also chamber the edge of the pipe slightly to help fitment of the end caps.

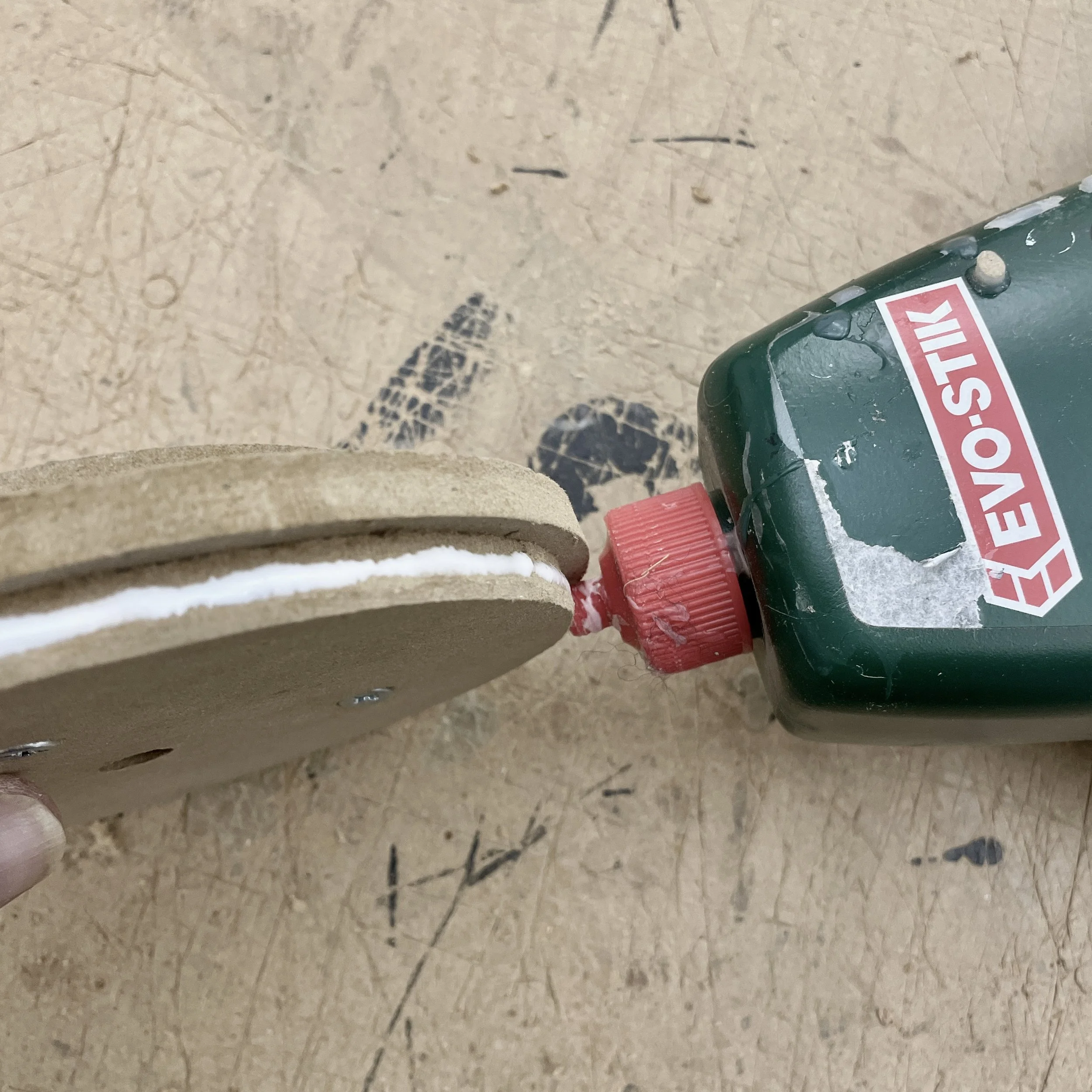

When you’re happy with the fit run a small bead of glue around the rebate & fit the end caps.

Leave the end caps to set for at least an hour or two then wrap the pipe.

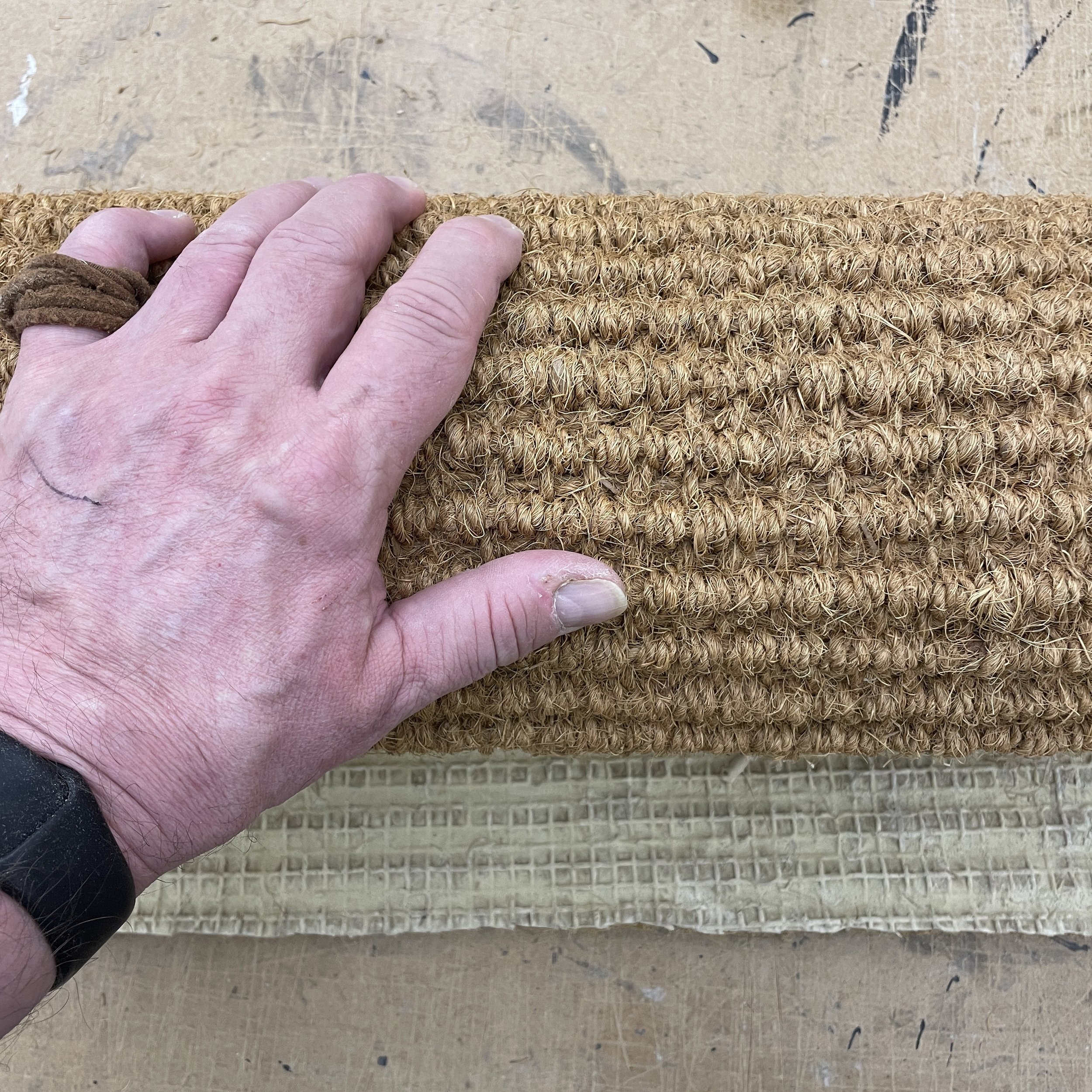

The carpet needs to be approx 150mm longer than the pipe length & 3.5 times wider than the outside tube diameter – use the secateurs to make a clean cut down the long edge of the carpet between the ribs making sure that you leave as much as possible of the flat section between the ribs of the carpet if using a boucle or looped pile material.

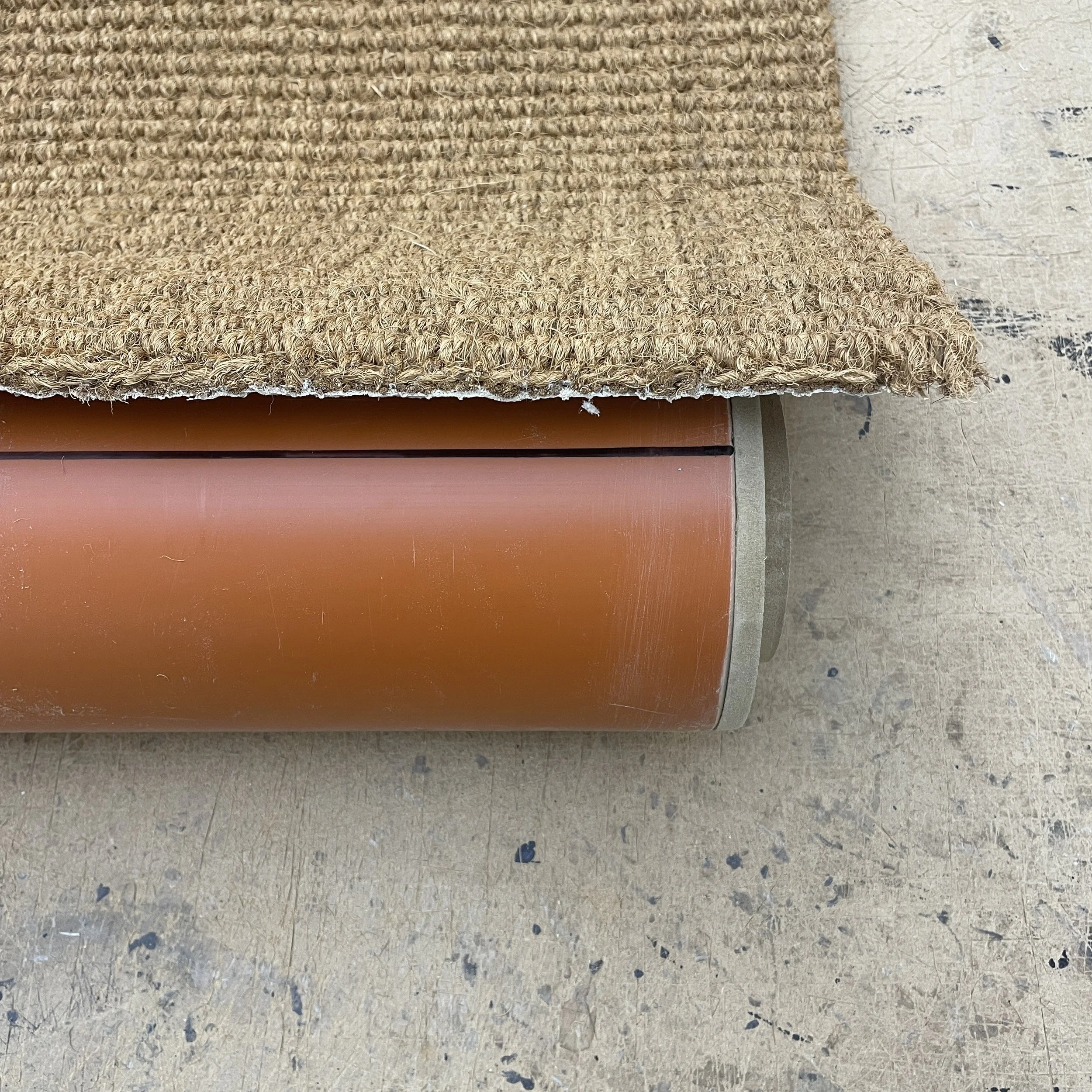

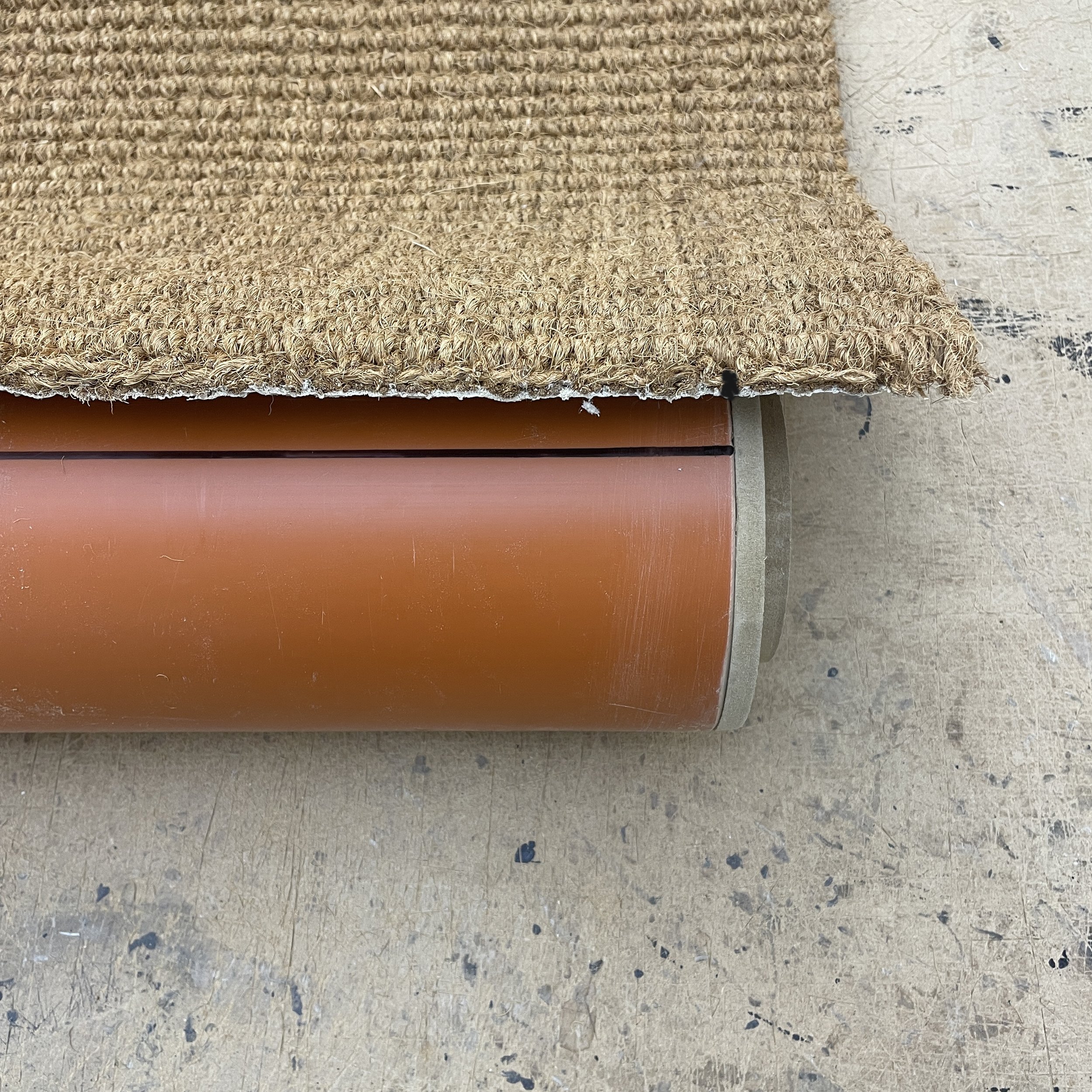

Offer up the cut edge of the carpet to the pipe to check alignment & mark up the overhang at one end once you’ve made sure they are equal.

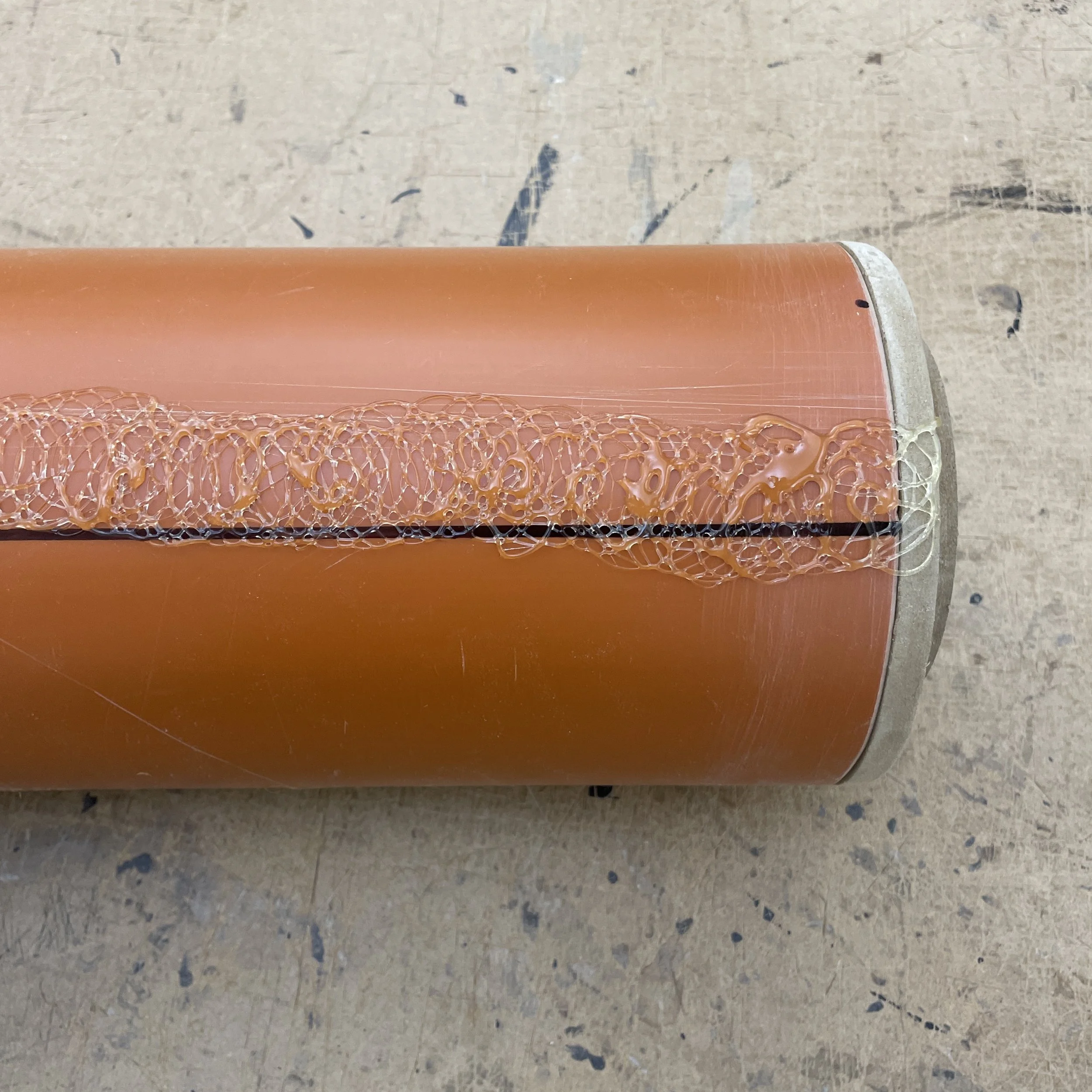

Run a thick bead of hot melt glue along the marked-up line

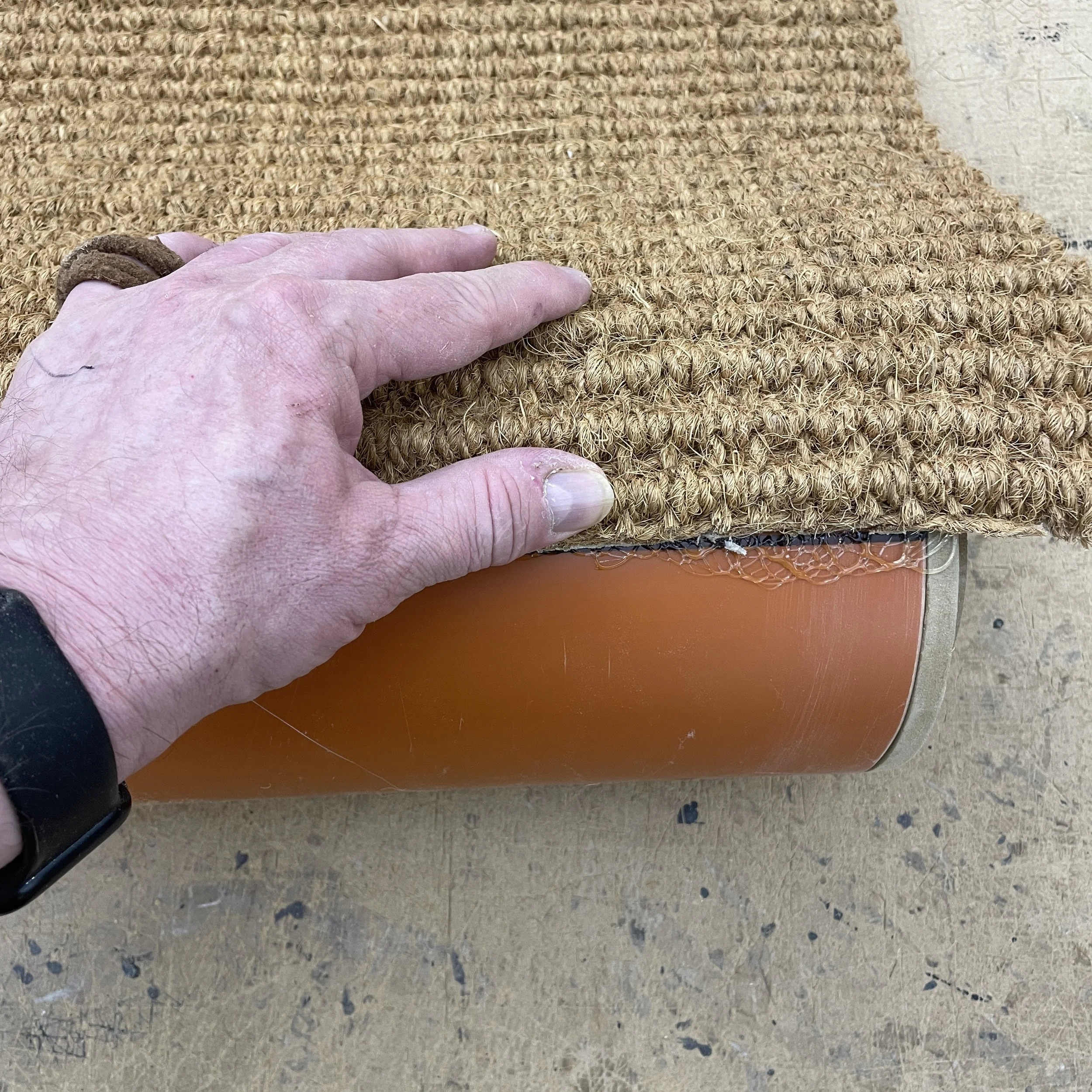

Fix the cut edge of the carpet to the tube along the scribed line – again, make sure you have equal overhanging carpet at each end of the tube.

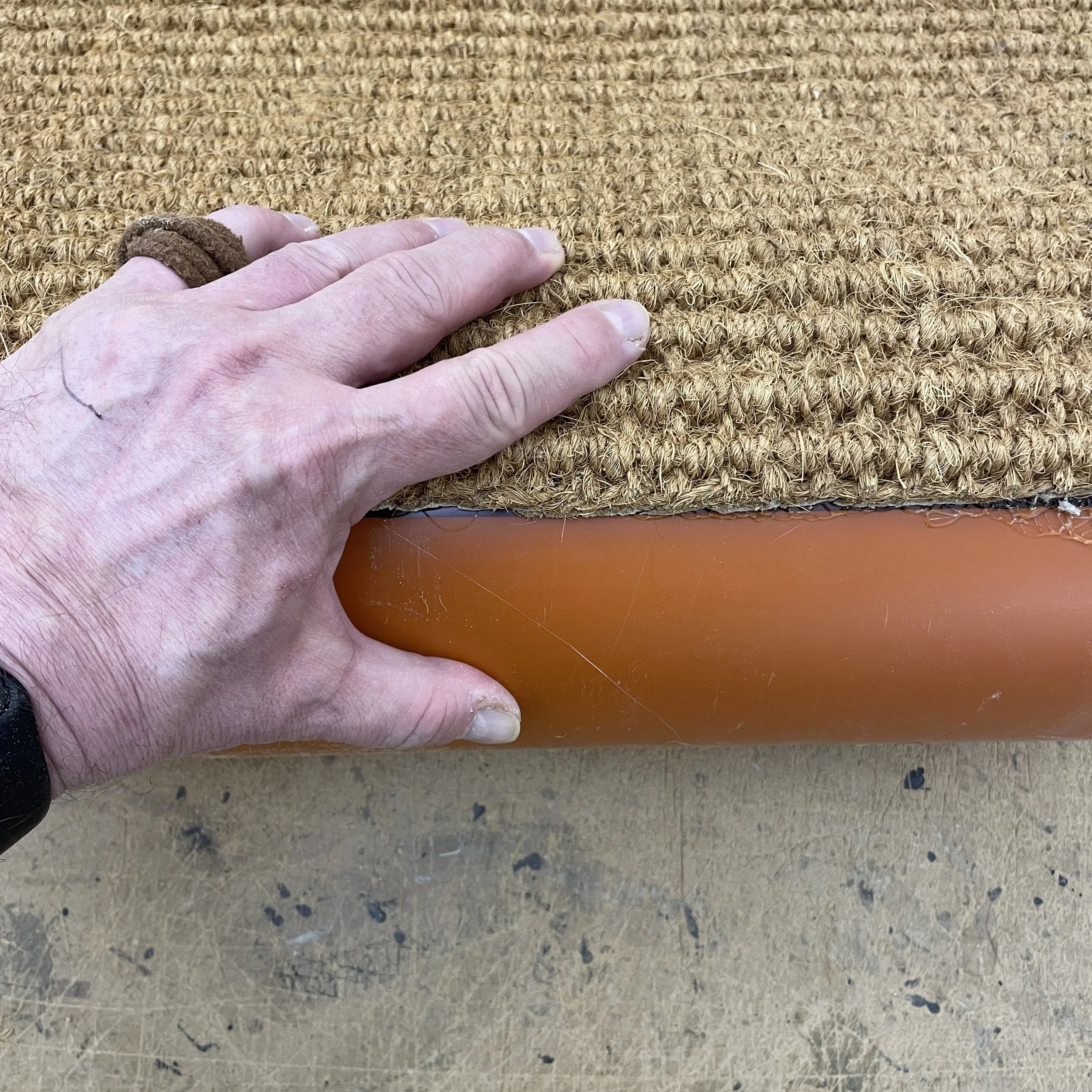

Work along the cut edge & apply pressure to make sure that the carpet has bonded.

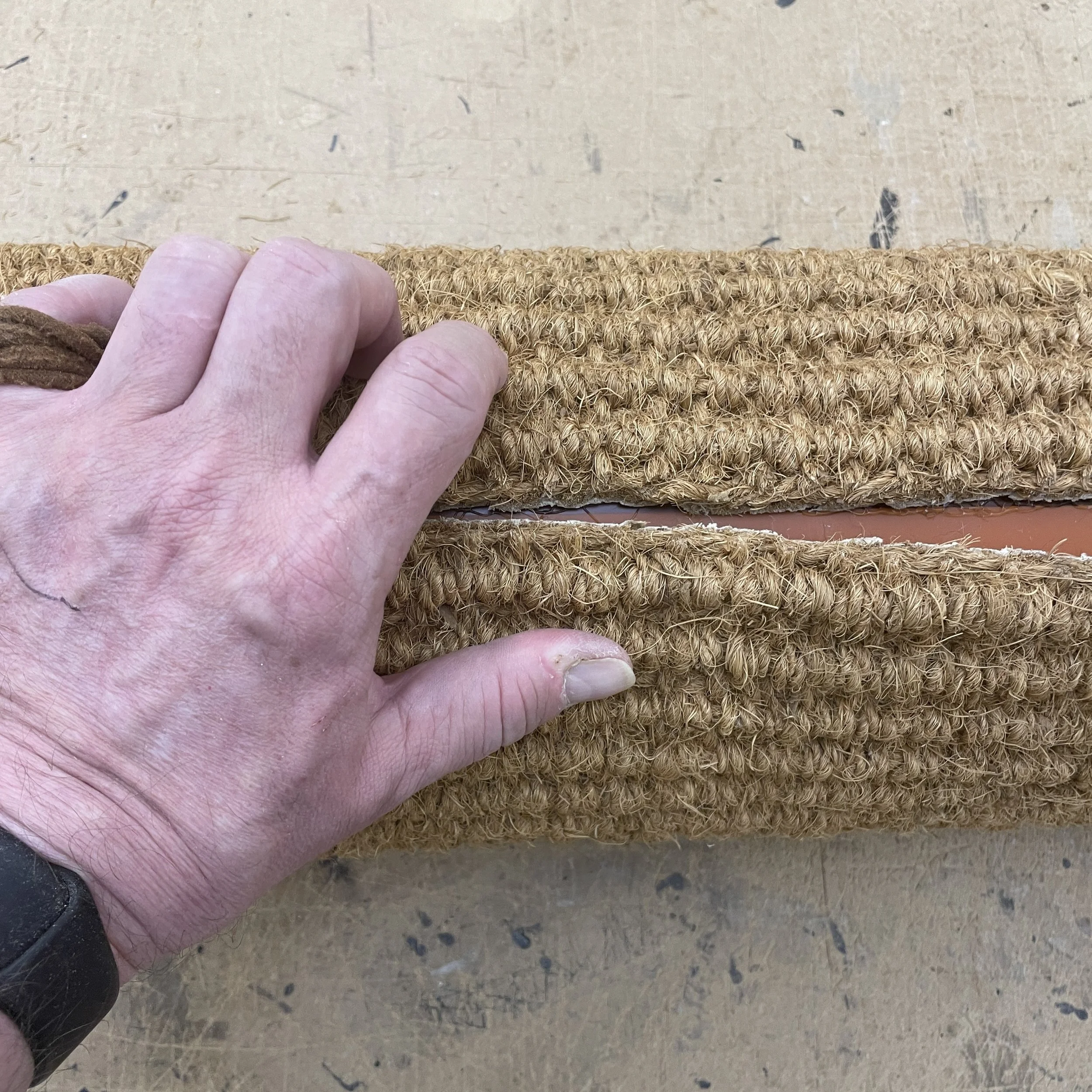

Wrap the carpet around the tube by pulling & massaging to get the tightest wrap - then cut the edge of the carpet up to the seam leaving a complete rib closest to the glued edge if possible.

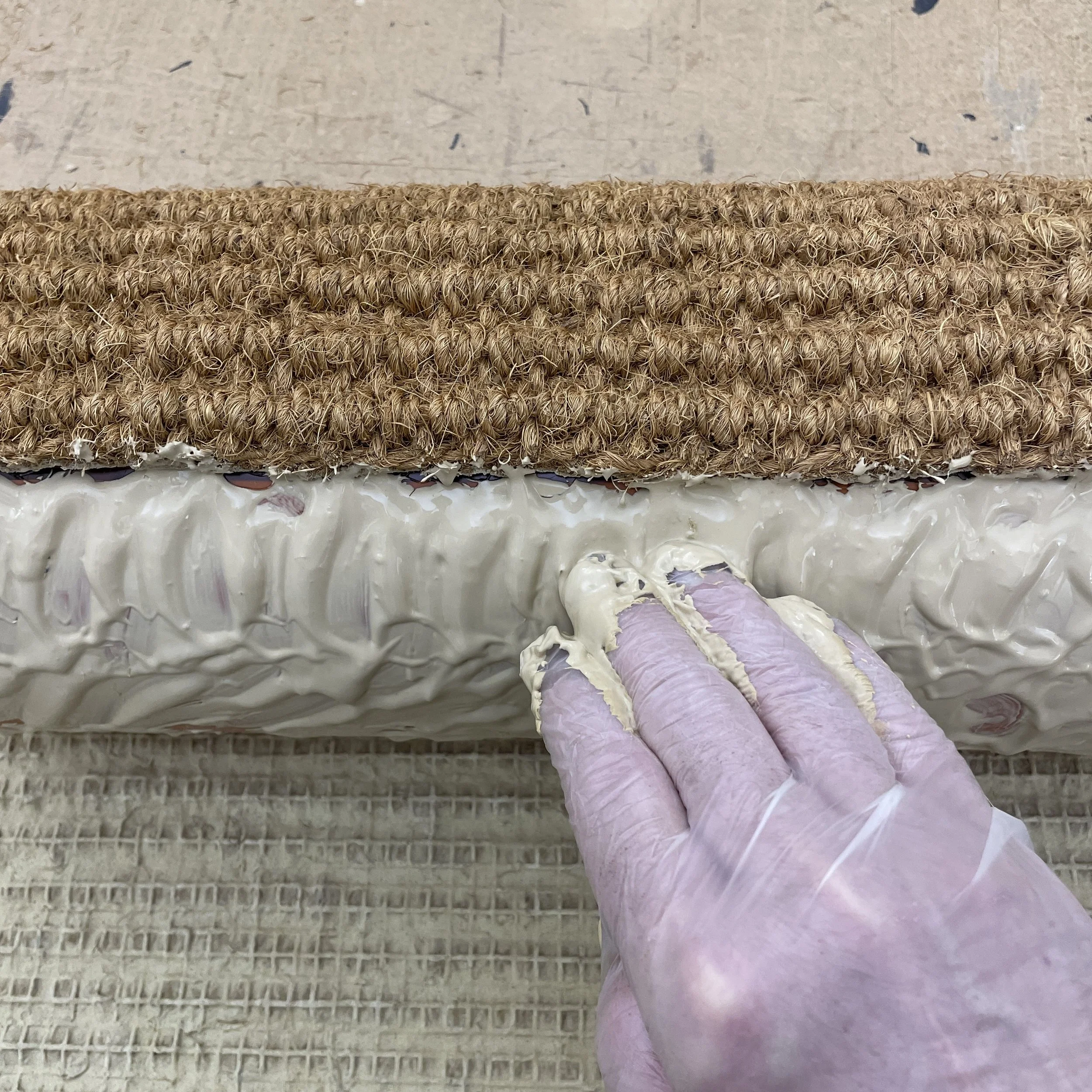

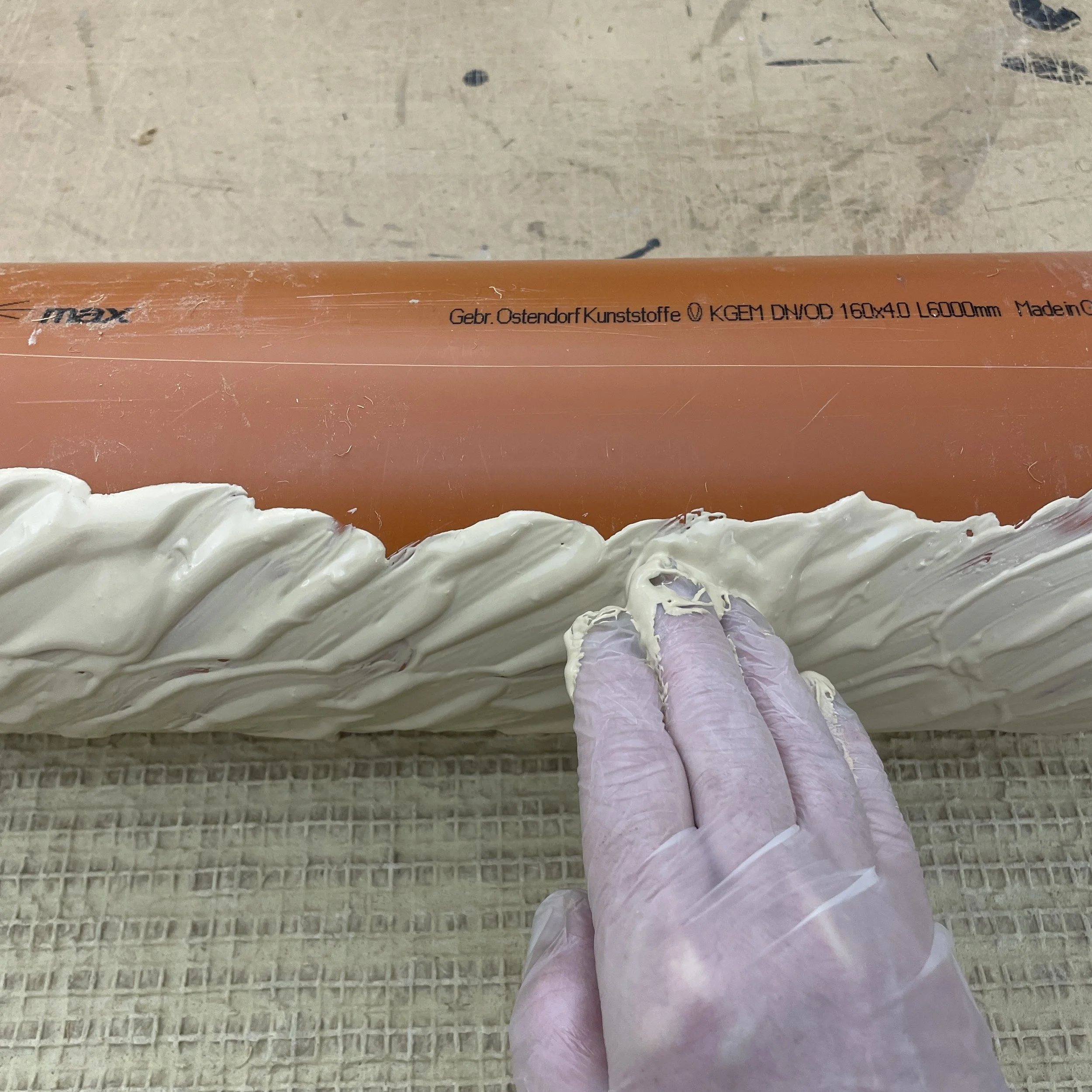

When you’re happy with the seam start applying the adhesive in sections along the pipe of the tube wearing rubber gloves - work the adhesive onto the pipe in ridges as this gives the best bond & is the most economical way of applying it.

Apply the adhesive on to the tube in sections rotating the tube as you working up to the seam - try to apply a line of ridges along this point to help with fixing the carpet again noting that parquet flooring adhesive works better than just flooring adhesive when fixing coir carpet.

Then work the fabric around the tube making sure that there is no give in the carpet & the wrap is as tight as possible - it will be easier working the coir around the tube if you place it on a carpeted floor then massage the coir whilst rotating the tube bit-by-bit as the carpet will will help to hold the wrapped sections tight.

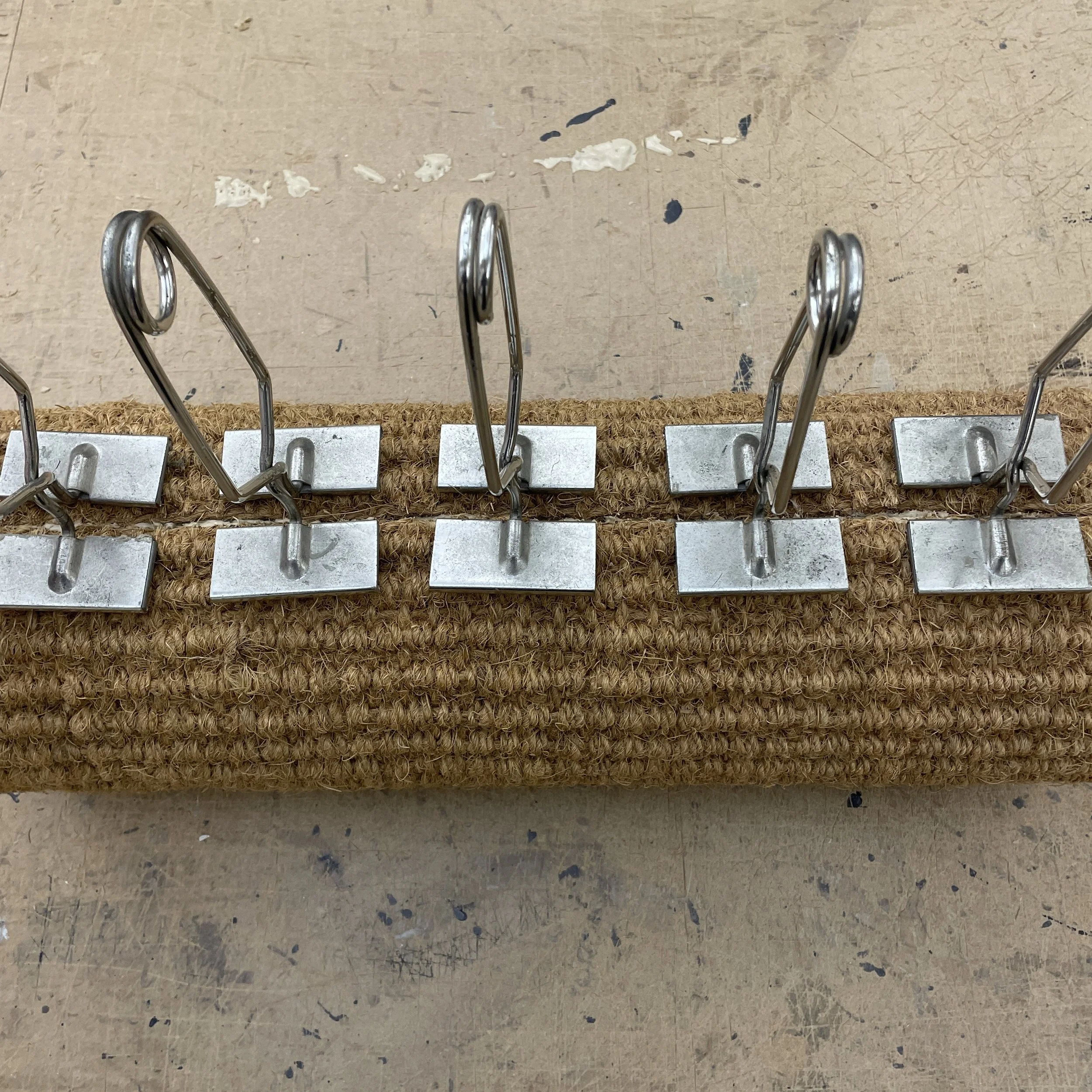

We use clamps at this stage to hold the carpet seam together while working the carpet around the tube & then leave the unit overnight for the glue to cure - it’s unlikely that you will have clamps so you’ll need to continue pulling & wrapping the carpet as noted in the previous stage until the carpet has bonded enough to move onto the next step, which should take around 20 minutes or so.

Trim the edge of the carpet to the glued seam using the secateurs then fix this edge using the hot melt glue gun – it’s best if you can get a clean join without the edges overlapping or being too far apart.

When fixing the seam it's best to apply glue in sections of 10-15cm at a time so that the glue does not harden.

Cut the carpet at each end of the unit using the secateurs to form the wrapped end detail that will fold over the end caps.

Fold the carpet over the ends & use the inside edge of the end cap to guide the secateurs when making a cut.

The carpet will be easier to trim if you remove excess fabric before cutting the flaps but make sure you leave at least 4-5cm to form the flaps.

Cut the flaps between the ribs into sections creating a small v shape cut - we cut the flap into 4 sections but it will be easier if you go for 6-8 as you won’t need to apply as much pressure when forming the wrap.

Fix the flaps with the hot melt glue gun one at a time.

Work the flap on to the end cap making sure the ribs are radiating pointing to the centre of the end end & you have a good fix before moving on to the next one.

Clean up the edge of the wrapped ends with the secateurs.

Screw the feet around the end cap equi distance - it’s best to drill small pilot holes for the screws & the feet can overlap the coir slightly if you need to avoid the central bush.

Pull some coir strands from the carpet off cuts & cut these into 3-4mm long fibres in preparation for finishing the unit's seam.

Apply a thick bead of hot melt glue along the seam then dab these fibres onto the seam - again it's best to apply the glue in sections of 10-15cm at a time.

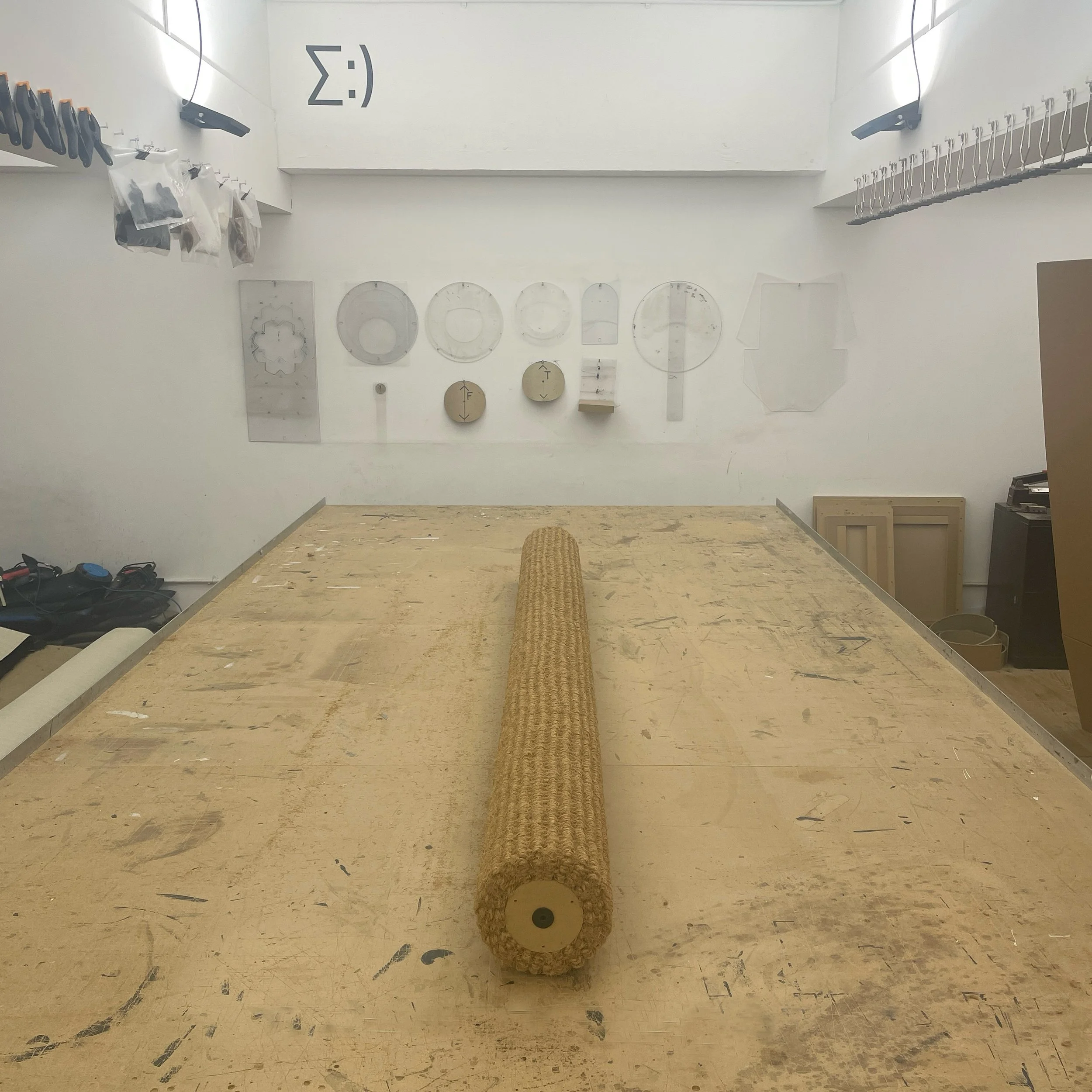

Stand back & admirer your handy work.

Installation

Please refer to our special DIY Polecat Install for installation instructions.

NB Please note that although we obviously carry stock of the standard tube, carpet & sheeting materials we are unable to sell these materials to customers (sorry) but we do sometimes have offcuts & tubes that are offered free-of-charge for collection - please sign up to our newsletter below if you would like to hear about these offers.
